2021 TERYX4 S LE

2021 TERYX4 S LE for Sale at Ultimate Kawasaki Gold Coast in Nerang, QLD | Specifications and Review Information
Eager for action, the four-passenger Teryx4 side x side is built to tackle tough trails. With the perfect combination of rugged sport performance and capability, the Teryx4 is made to conquer the outdoors with the entire crew on board.
- 783cc V-twin engine
- Speed-sensitive Electric Power Steering (EPS)
- FOX 2.0 LSC PIGGYBACK SHOCKS
- KAWASAKI STRONG 3-YEAR LIMITED WARRANTY
- Maxxis Bighorn tyres
- Double-X steel tube frame
- Additional DC outlet in rear
- Long-travel suspension
- Increased tread width
- A-arm shape for increased A-arm ground clearance
- 4 LED headlights
- Plastic roof
- 14-inch aluminum wheels

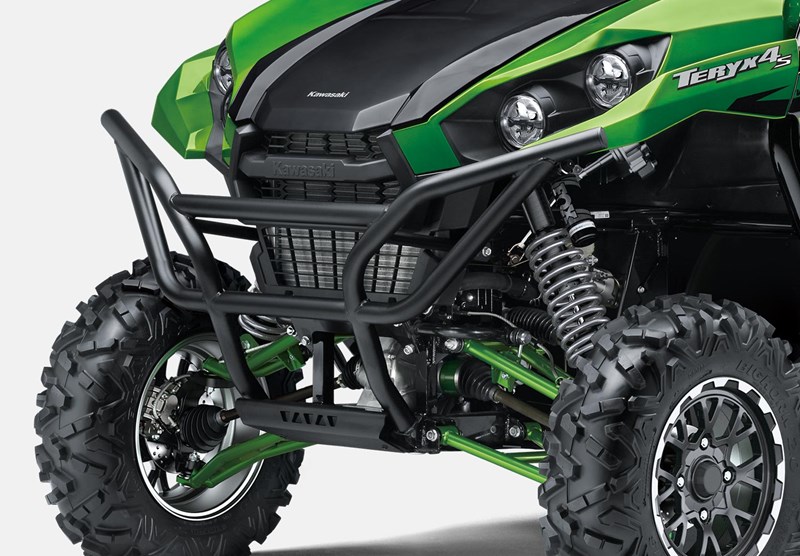

REAL STRENGTH
From the reinforced steel frame to the protective front brush guards, Teryx4 side x sides are built strong inside and out.

BUILT STRONG
Teryx4 side x sides are built around a double-X steel tube frame, welded strong to ensure maximum rigidity.

RELIABLE STOPPING POWER
Sealed rear wet brake delivers strong braking performance and requires almost no maintenance.

DEPENDABLE PROTECTION
All-steel front brush guard helps protect bodywork.
overseas colour shown

V-TWIN POWER
V-twin fuel-injected 783cc engine produces the power necessary to take on challenging terrain. Strong low- and mid-range torque helps you muscle through the toughest trails.

POWERFUL & RESPONSIVE
Four-stroke, fuel-injected, 783cc engine of Teryx4 side x sides work in unison with Continuously Variable Transmission (CVT) to produce smooth and consistent power over rugged terrain.

CAPABLE & PRECISE
Power delivery is instant thanks to automatic Continuously Variable Transmission (CVT) and centrifugal clutch. Precise throttle response means confident driving, while automatic engine braking is key in managing challenging descents.

BUILT FOR ADVENTURE
Teryx4 side x sides are ready to take on all challenges with strong power, agile handling, and a host of modern features for a capable, exhilarating ride.

CAPABLE & AGILE
A tight turning radius and Electric Power Steering (EPS) allow you to easily take on tighter trails.

BUILT TO CONQUER
For demanding terrain that requires high-performance suspension components, Teryx4 side x sides are equipped with independent A-arms and premium FOX Podium 2.0 Piggyback shocks (coil-over, front and rear).

BRING ON THE TOUGHEST
Teryx4 S models feature high-performance FOX Podium 2.0 LSC Piggyback shocks with revised suspension settings for greater ride comfort. A longer shock stroke translates to wheel travel increasing to 10.7 inches in the front and 10 inches in the rear. For navigating over trail obstacles, the new A-arm shape offers increased ground clearance. Teryx4 S models also get a longer 88.2-inch wheelbase and an increased tread width of 55 inches for a more surefooted stance.
overseas model shown

CONFIDENCE INSPIRING
Teryx4 side x sides come equipped with dual front disc brakes that pack the stopping power needed to confidently take on the toughest trails.

EQUIPPED FOR MORE
Conquer the outdoors with thoughtful convenience features that will make your weekend adventures more enjoyable.

COMFORTABLE & ROOMY
Teryx4 side x sides feature stadium-style seating with plenty of head, shoulder and leg room. Adjustable tilt steering wheel conforms to your specific needs while automotive style doors provide easy in/out access and added protection from external debris.

USEFUL & CONVENIENT
Dash-mounted multifunction digital display meter provides convenient vehicle information at a glance, like total kilometers, water temperature and low-oil pressure indicators.

SMOOTH & EASY
Speed-sensitive Electric Power Steering (EPS) enhances performance by offering added assistance at lower speeds and great feedback at higher speeds. Drive with confidence knowing the EPS provides precise steering, smooth feel and predictable operation to help get you where you want to go.

READY FOR THE DAY
DC power outlets and cupholders provide added convenience. While LE models also include a plastic roof for added comfort.
Maximum Power | 43 kW {58 PS} / 6,750 rpm |
Maximum Torque | 64 N·m {6.5 kgf·m} / 5,500 rpm |
Engine | 4-stroke 90° V-Twin |
Displacement | 783 cm³ |
Bore x Stroke | 85.0 x 69.0 mm |
Compression Ratio | 10.7:1 |
Valve System | SOHC, 4 valve |
Fuel System | Fuel injection (36 x 2) |
Ignition | Battery & Coil |
Starting | Electric |
Cooling | Liquid-cooled |
Lubrication | Forced lubrication, wet sump |
Transmission | Dual range (high/low) CVT with centrifugal clutch and reverse |
Primary Reduction Ratio | 2.788 ~ 0.725 (belt converter) |
Gear Ratio: Forward (High) | 3.279 (28/26 x 30/19 x 27/14) |
Gear Ratio: Forward (Low) | 5.553 (31/17 x 30/19 x 27/14) |
Gear Ratio: Reverse | 4.568 (16/12 x 18/16 x 30/19 x 27/14) |
Final Reduction Ratio: Front | 4.375 (35/8) |
Final Reduction Ratio: Rear | 4.400 (44/10) |
Final Drive | 2WD/4WD, shaft |
Frame | Double-X reinforcement type, tubular carbon steel |
Front Suspension | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping |
Rear Suspension | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping |
Front Wheel Travel | 272 mm |
Rear Wheel Travel | 254 mm |
Steering | Rack & pinion, assisted with Electric Power Steering |
Rake | 7° |
Trail | 39 mm |
Steering Angle (L/R) | 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT) |
Front Tyres | MAXXIS Bighorn 2.0 27 x 9R14 6PR |
Rear Tyres | MAXXIS Bighorn 2.0 27 x 11R14 6PR |
Front Brakes | Dual Hydraulic disc |
Front Calipers | two-piston caliper |
Rear Brake/s | Enclosed wet multi-plate |
Parking Brake | Enclosed wet multi-plate |
Dimensions (LxWxH) | 3185 x 1590 x 2045 mm |
Overall Length | 3185 |
Overall Width | 1590 |
Overall Height | 2045 |
Wheelbase | 2240 |
Road Clearance | 285 mm (standard), 310 mm (max preload) |
Seat Height | 865 mm (front), 930 mm (rear) |
Curb Mass** | 745 kg |
Fuel Capacity | 30L |
Tread Front / Rear | Tread Front / Rear 1400 mm / 1330 mm |
Turning Radius | 5.4m |
Cargo Bed Dimensions (LxWxH) | 455 x 1,210 x 220 (front) / 125 (rear) mm |
Cargo Bed Capacity | 113 kg |
Seating Capacity | 4 |
Vehicle Load Capacity | 497 kg |
Towing Capacity | 590 kg |
Lighting | High/Low beam LED with LED tail lights |
