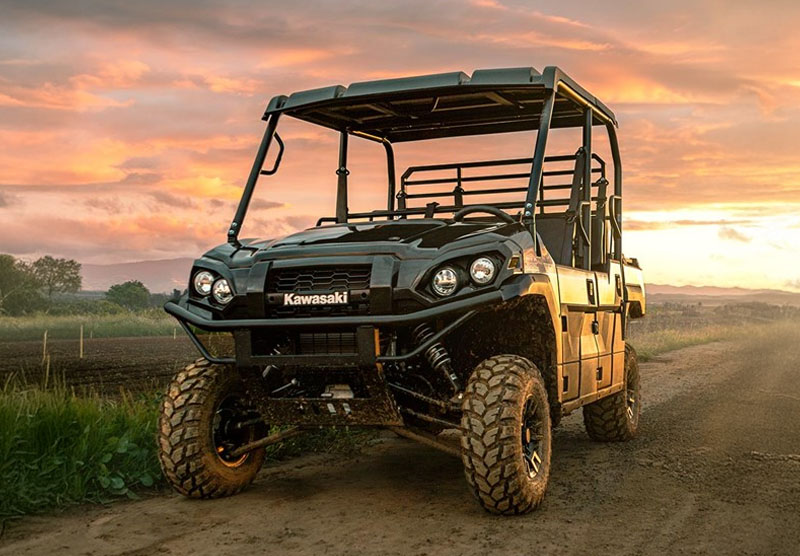

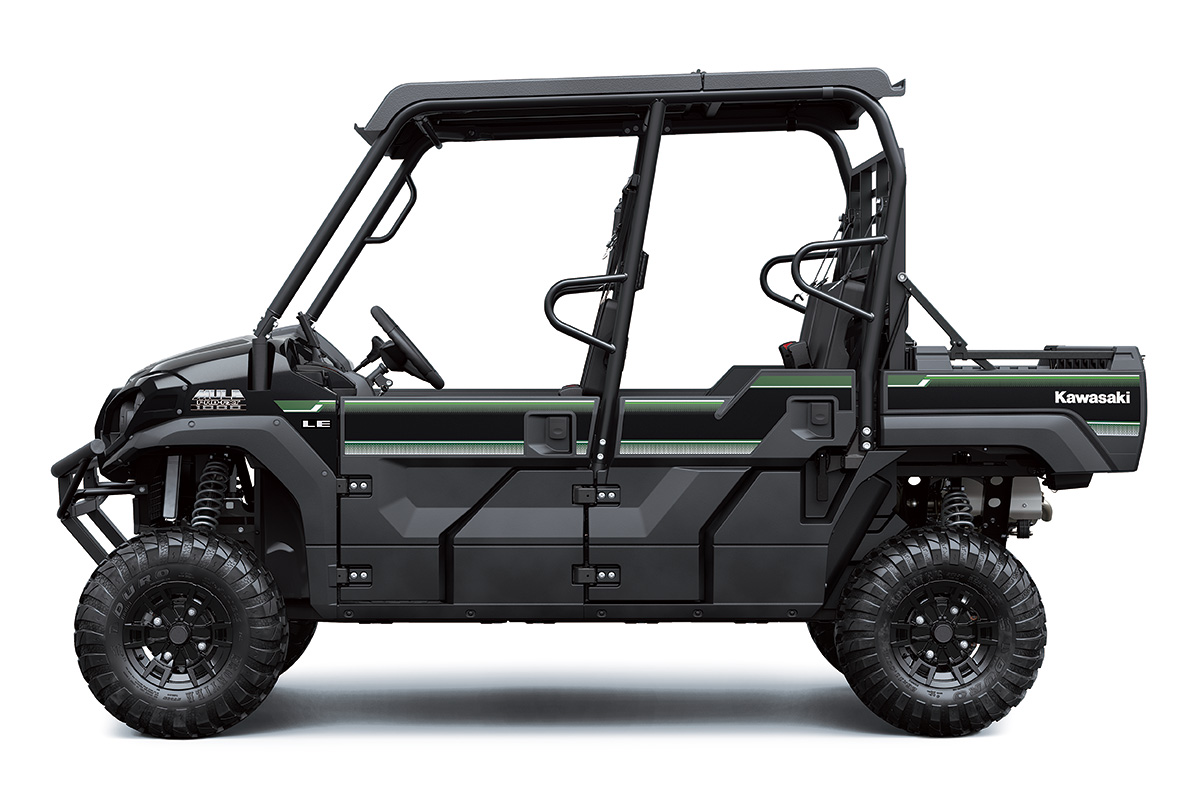

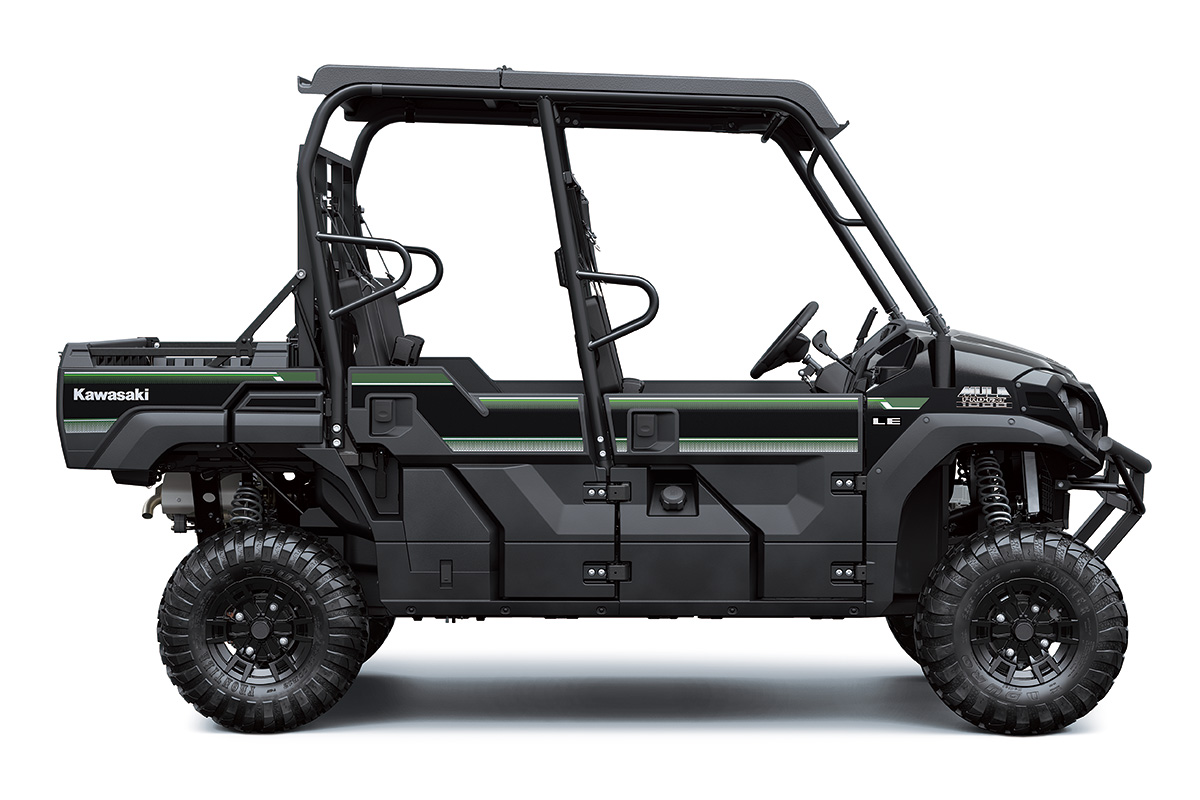

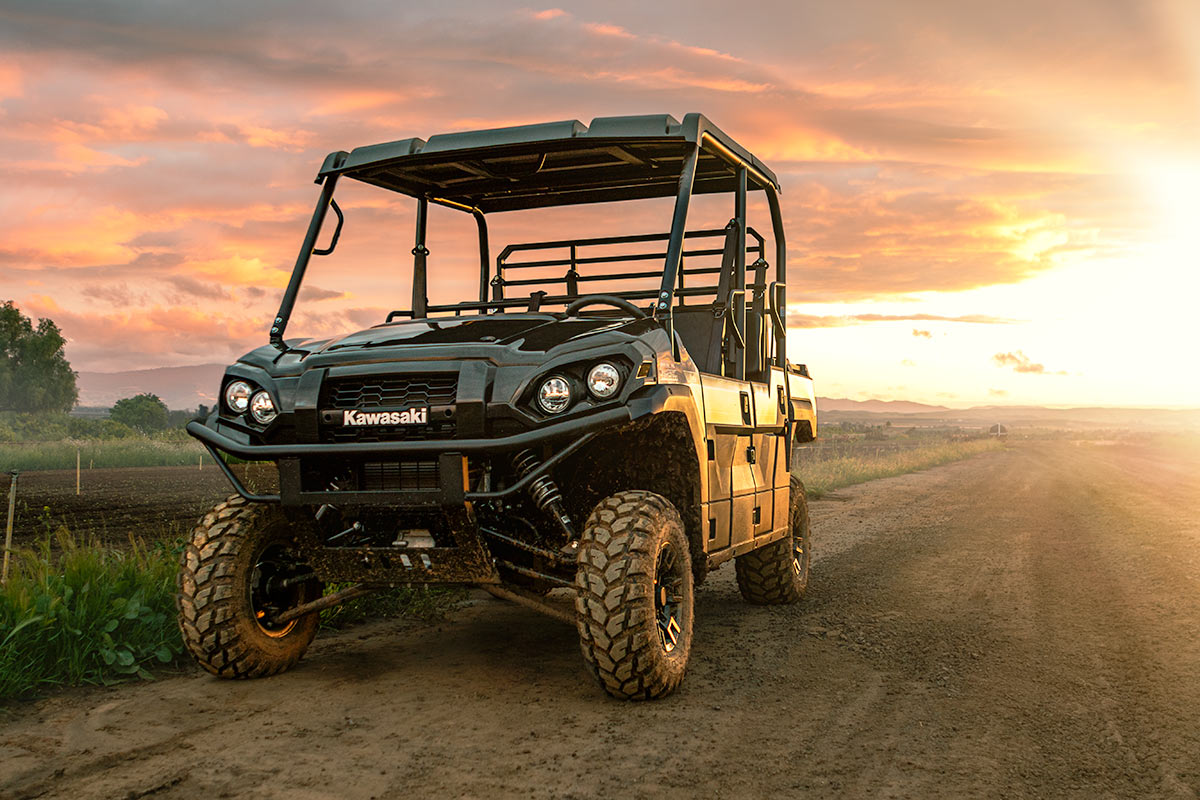

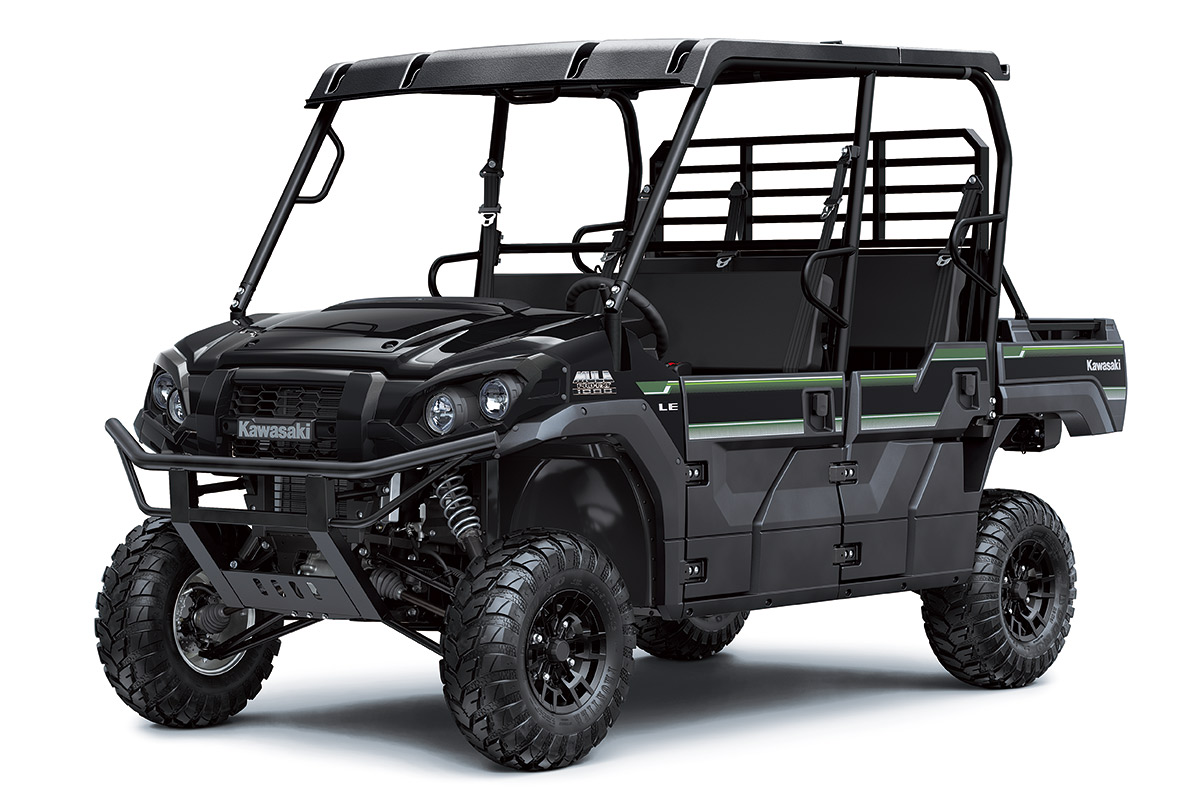

2024 MULE PRO-FXT 1000 LE
Kawasaki 2024 Mule PRO-FXT 1000 LE for Sale at Ultimate Kawasaki Gold Coast in Nerang, QLD | Specifications and Review Information
KAWASAKI STRONG: FULL-SIZED 3- TO 6-PASSENGER UTILITY SIDE X SIDE
The MULE PRO-FXT 1000 LE is a full-sized, high-capacity side x side that features our exclusive 3- to 6-passenger Trans Cab system. With a reliable 999 cc Kawasaki built engine, this dependable side x side is ready to transport heavy loads or transport the entire crew without breaking a sweat. Work harder and smarter with the dependable help of the MULE PRO-FXT 1000 LE.
FEATURING:
- KAWASAKI-BUILT, LIQUID-COOLED 999 cc PARALLEL-TWIN ENGINE
- MASSIVE GROUND CLEARANCE
- LONG-TRAVEL DOUBLE-WISHBONE SUSPENSION
- SERIOUS-LOOKING FRONT-END STYLING
- IMPROVED MAINTENANCE (EASY ACCESS TO OIL FILTER, DIPSTICK AND AIR-CLEANER FILTER)
- 3- TO 6-PASSENGER TRANS CAB SYSTEM
| Maximum Power | 52 kW {71 PS} / 6,500 rpm |
| Maximum Torque | 83 Nm {8.5 kgfm} / 4,500 rpm |
| Engine | 4-stroke Parallel Twin |
| Displacement | 999 cc |
| Bore x Stroke | 92.0 x 75.1 mm |
| Compression Ratio | 10.1:1 |
| Valve System | DOHC, 4 valves per cylinder |
| Fuel System | Fuel injection: ø38 mm x 1 |
| Ignition | Digital |
| Starting | Electric |
| Cooling | Liquid-cooled |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with reverse |
| Primary Reduction Ratio | 3.28 ~ 0.70 (belt converter) |
| Gear Ratio: Forward (High) | 1.668 (34/33 x 34/21) |
| Gear Ratio: Forward (Low) | 3.312 (45/22 x 34/21) |
| Gear Ratio: Reverse | 2.571 (27/17 x 34/21) |
| Final Reduction Ratio: Front | 6.382 (31/17 x 35/10) |
| Final Reduction Ratio: Rear | 6.245 (31/21 x 55/13) |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
| Frame | Ladder type, tubular steel |
| Front Suspension | Double wishbone |
| Rear Suspension | Double wishbone |
| Front Wheel Travel | 279 mm |
| Rear Wheel Travel | 256 mm |
| Steering | Rack and pinion with Electric Power Steering |
| Rake | 3.7° |
| Trail | 20 mm |
| Steering Angle (L/R) | 40° (IN) / 31° (OUT), 40° (IN) / 31° (OUT) |
| Front Tyres | 26 x 9.00R12 4PR |
| Rear Tyres | 26 x 11.00R12 4PR |
| Front Brakes | Dual ø212 mm discs |
| Front Calipers | Two-piston |
| Rear Brake/s | Dual ø212 mm discs |
| Rear Caliper/s | Single-piston |
| Parking Brake | Dual discs (mechanical) |
| Dimensions (LxWxH) | 3,450 x 1,625 x 2,055 mm |
| Wheelbase | 2,345 mm |
| Road Clearance | 295/320 mm (standard/max preload) |
| Seat Height | 915 mm (front), 1,000 mm (rear) |
| Curb Mass** | 868 kg |
| Mass without Fuel | 834 kg |
| Fuel Capacity | 30 litres |
| Tread Front / Rear | 1,373 mm / 1,307 mm |
| Turning Radius | 4.8 m |
| Cargo Bed Dimensions (LxWxH): 6-Person Mode | 560 x 1,363 x 279 mm |
| Cargo Bed Dimensions (LxWxH): 3-Person Mode | 1,085 x 1,363 x 279 mm |
| Cargo Bed Capacity: 6-Person Mode | 158 kg |
| Cargo Bed Capacity: 3-Person Mode | 453 kg |
| Seating Capacity | 3 or 6 |
| Vehicle Load Capacity | 733 kg |
| Towing Capacity | 907 kg |
| Lighting | 2x halogen, 2x LED headlights |
| Model Code | KAT1000ARFNN |
