2024 KLX230 S

Kawasaki 2024 KLX230 S LAMS for Sale at Ultimate Kawasaki Gold Coast in Nerang, QLD | Specifications and Review Information

LIGHTWEIGHT DUAL-SPORT FOR ON- AND OFF-ROAD FUN

The KLX230 extends the playing field with the thrill of dual-sport performance that's ready to conquer both on- and off-road. This agile bike features a quick-revving 233 cc engine, lightweight chassis, new longer-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.

FEATURING:

233 cc FUEL-INJECTED AIR-COOLED FOUR-STROKE SINGLE WITH ELECTRIC START
NEW LONGER-TRAVEL SUSPENSION AND AMPLE GROUND CLEARANCE
NEW ABS SYSTEM WITH ON/OFF FUNCTION
NEW SMARTPHONE CONNECTIVITY VIA RIDEOLOGY THE APP

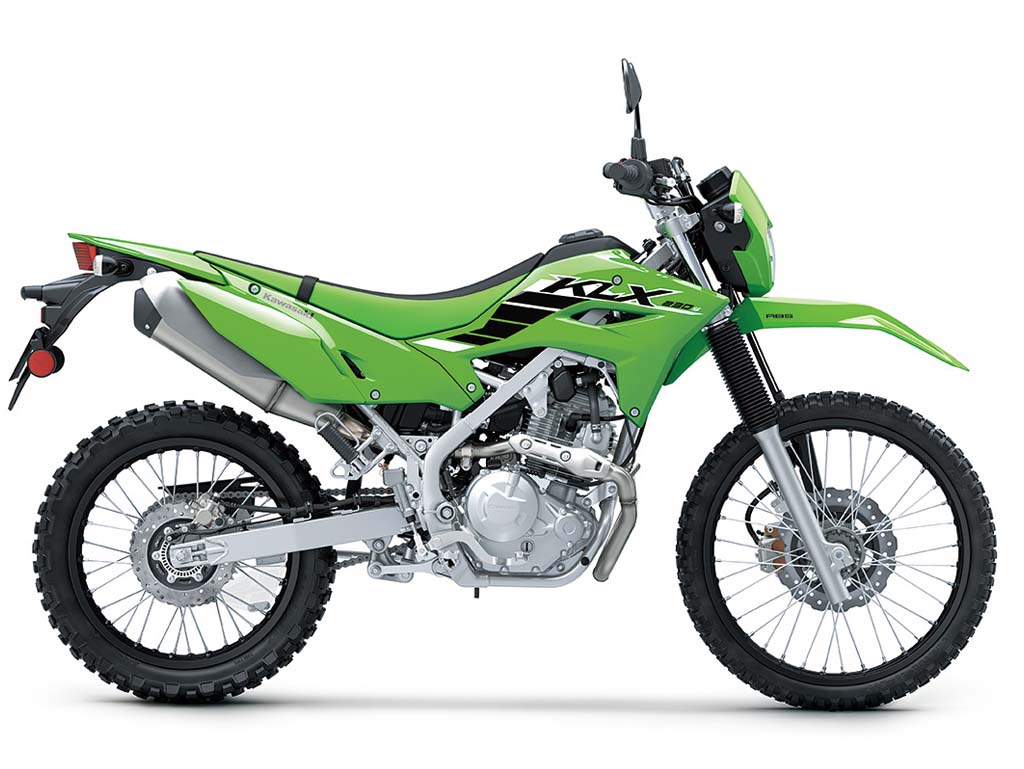

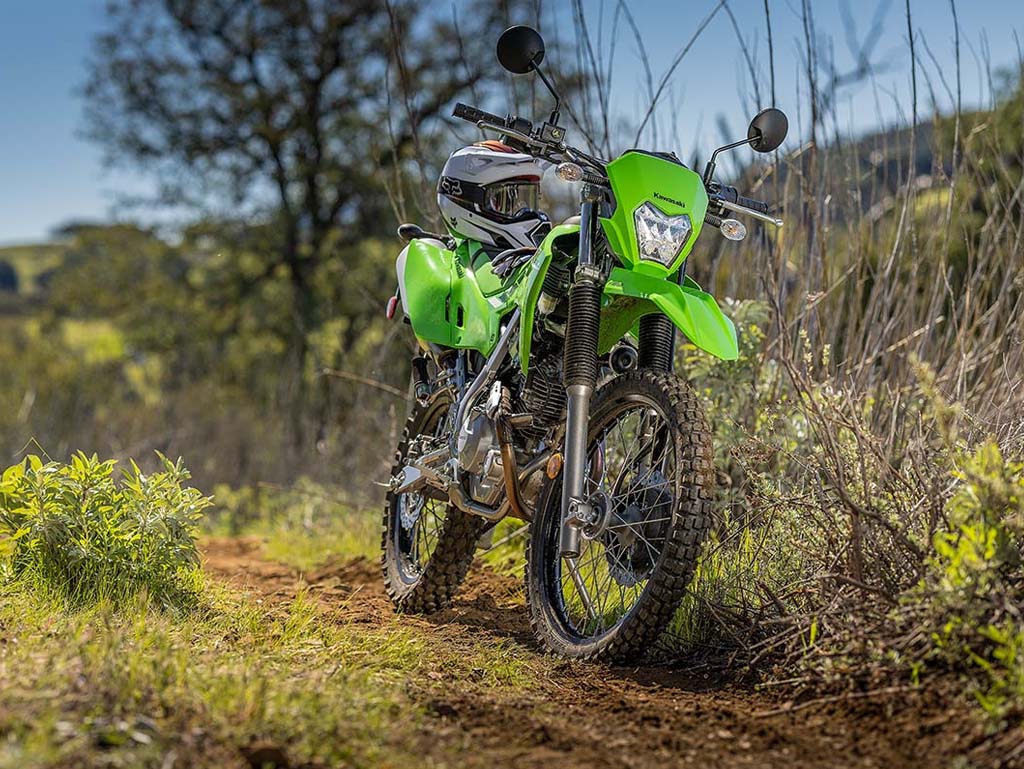

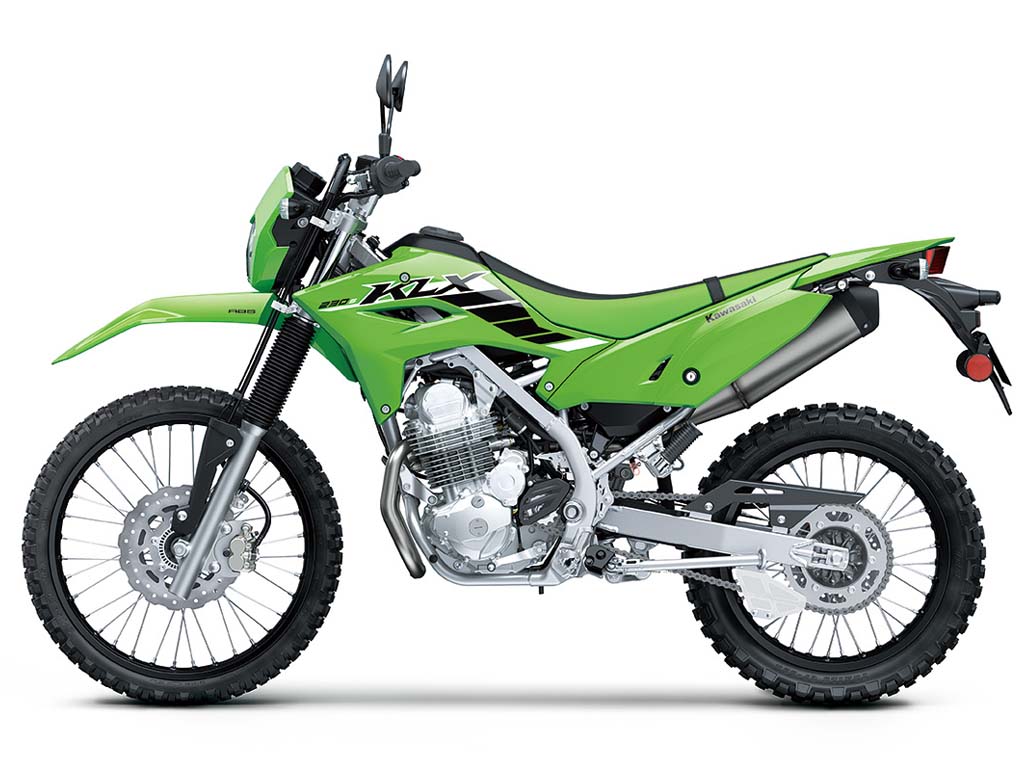

2024 Kawasaki KLX230 S - Lime Green
Lime Green

GO PLAY

The KLX230 S dual-sport motorcycle is powered by a 233 cc fuel-injected, air-cooled single, tuned for low- to mid-range power.

SMOOTH, RELIABLE, DURABLE

A compact and lightweight engine delivers easy-to-use low- to mid-range torque ideal for trail riding. New ECU settings result in improved high-altitude power delivery and crisper throttle response in cold temperatures. A smooth-shifting six-speed transmission covers a wide range of street-riding conditions and allows for more comfortable cruising on the highway, as well as trail riding.

HASSLE-FREE ADVENTURE

Electric start and fuel injection ensure hassle-free performance regardless of altitude or air temperature, while contributing to clean emissions.

BUILT TOUGH

The engine and chassis were designed together to make the KLX230 as agile and lightweight as possible.

PLATFORM WITH PURPOSE

The high-tensile perimeter frame, short wheelbase and a low seat height offer the handling needed for confident trail riding for a wide range of riders and environments. The KLX230 S offers an accessible seat height of 830 mm.

AT-A-GLANCE INFORMATION

An all-digital instrument panel offers at-a-glance information care of a large, easy-to-read LCD display screen. Features include: speedometer, odometer, dual-trip meters, fuel gauge, clock, and indicator lamps.

A KAWASAKI FIRST

The KLX230 S is available with an innovative dual-sport calibrated ABS system jointly developed with Bosch. Designed to assist stopping performance on low-friction surfaces, this ABS system will offer reassurance to both new and experienced riders. Switch-operated rear brake ABS cancel function facilitates more active off-road sport riding performance.

Maximum Power	13.2 kW {18 PS} / 8,000 rpm
Maximum Torque	18.0 Nm {1.8 kgfm} / 6,400 rpm
Engine	4-stroke Single
Displacement	233 cc
Bore x Stroke	67.0 x 66.0 mm
Compression Ratio	9.4:1
Valve System	SOHC, 2 valves
Fuel System	Fuel injection: ø32 mm x 1
Ignition	Digital
Starting	Electric
Cooling	Air-cooled
Lubrication	Forced lubrication, wet sump
Transmission	6-speed, return
Primary Reduction Ratio	2.871 (89/31)
Gear Ratio: 1st	3.000 (39/13)
Gear Ratio: 2nd	2.067 (31/15)
Gear Ratio: 3rd	1.556 (28/18)
Gear Ratio: 4th	1.261 (29/23)
Gear Ratio: 5th	1.040 (26/25)
Gear Ratio: 6th	0.852 (23/27)
Final Reduction Ratio	3.214 (45/14)
Clutch	Wet multi-disc, manual
Final Drive	Chain

Frame	Perimeter, high-tensile steel
Front Suspension	ø37 mm telescopic fork
Rear Suspension	New Uni Trak with adjustable spring preload
Front Wheel Travel	200 mm
Rear Wheel Travel	223 mm
Rake	24.6°
Trail	96 mm
Steering Angle (L/R)	45° / 45°
Front Tyre	2.75-21 45P
Rear Tyre	4.10-18 59P
Front Brake/s	ø265 mm petal disc
Front Caliper/s	Dual-piston
Rear Brake	ø220 mm petal disc
Rear Caliper	Single-piston

Dimensions (LxWxH)	2,080 x 845 x 1,140 mm
Wheelbase	1,365 mm
Road Clearance	240 mm
Seat Height	845 mm
Curb Weight*	132 kg
Fuel Capacity	7.5 litres
Model Code	KLX232CRFNN

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner's Manual and all on-product warnings. Professional rider shown on a closed course. 2021 Kawasaki Motors Pty Ltd.

Specifications subject to change.
